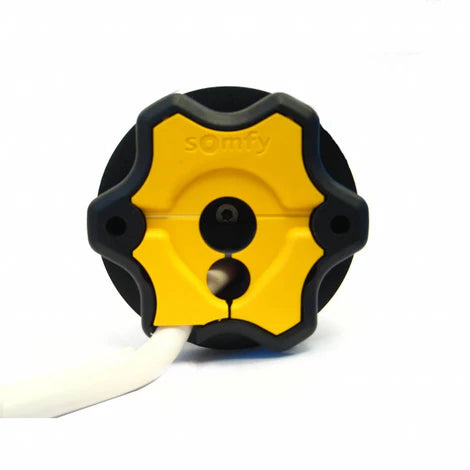

somfy motor markisen funkmotor orea 50 rts OREA 50 RTS 40/17 3M White Cable | Part number 1117119 | Somfy Motor

somfy motor markisen funkmotor orea 50 rts OREA 50 RTS 40/17 3M White Cable | Part number 1117119 | Somfy MotorInformation: 1. 230V 50Hz tubular motor. 2. Specifically designed for awnings with a casette headbox. 3. Built in radio receiver with Somfys rolling code. 4. Remote set limits with auto set over torque upper limit 5. Turning capacity limited only by thermal time. 6. Suitable for tubes from 50. 7. Memory Capacity: 12 channels transmitters, plus 3 sensors. 8. Programmable my position. 9. Requires the use of a crown and wheel for tube adaptation. 10.

Information:

1.      230V / 50Hz tubular motor.

2.      Specifically designed for awnings with a casette headbox.

3.      Built-in radio receiver with Somfy’s rolling code.

4.      Remote set limits with auto set over torque upper limit

5.      Turning capacity limited only by thermal time.

6.      Suitable for tubes from Ø50.

7.      Memory Capacity: 12 channels / transmitters, plus 3
sensors.

8.      Programmable “my” position.

9.      Requires the use of a crown and wheel for tube adaptation.

10.  Horizontal mount only.

11.  Intermittent Usage.

Technical Data:

1. L1 (mm): 745
2. L2 riveting distance (mm): 730
3. Torque (Nm): 40
4. Speed (rpm): 17
5. Rated Voltage (V): 230
6. Rated Power consumption (W): 270
7. Rated Current (A): 1.2
8. Running time before thermal cut off (min): 4
9. Thermal cut off temp (°C): 140
10. Average running noise (dbA): 57
11. Minimum tube diameter: 50 x 1.5
12. Motor weight (kg): 2.85
13. Cable length (M): 3
14. Number of cores in cable: 3
15. Cross section of cable (mm²): 0.75
16. Index Protection: 44
